Large Size CMOS Sensor
PDAF Auto Focus
4K 60FPS Video
18x / 24x Optical Zoom
AI Auto Framing
Stunning Image
NDI Bridge
iris Enabled
Now iris-Enable
Easily control, manage and monitor your Z CAM P2-R1, anytime, anywhere, just via the cloud in your browser.
No extra hardware required!
Large Size CMOS Sensor
PDAF - Phase Detection Auto Focus
Boasting quick and accurate capabilities, PDAF achieves state-of-the-art auto focus for professional shooting.
Stunning Image Quality
Z CAM Color Science
Cinema camera
f/1.6 Large Aperture
Shallow Depth of field
4K 60fps max
Video shooting
18x/24x Optical zoom
NDI® | HX3
AI Auto Framing
AI-powered real-time intelligent target tracking enables the P2-R1 to deliver perfectly framed shots at all times.
Multiple Color Matrix
6 groups of RGB cross adjustment for precise customization of image colors.
Ultra-Smooth PTZ Control
A silky gimbal delivers rock-steady footage frame by frame.
Gesture Control
Lock tracking or switch view angles with simple gestures.
Effortless Pro IP Streaming
Multiple streaming protocols supported for hassle-free multi-platform live streaming.
Free-D for AR/VR Precision
Connections More Potential
Tally Light
Web Client
What's in the box

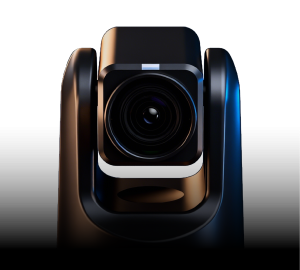

- Z CAM P2-R1 PTZ Camera Body
- 12V AC-DC Power Adapter & AC Cable
- Ceiling Mount Bracket
- Remote Controller
Technical Specifications
Imaging
| Image Sensor P2-R1(N) 18x zoom: 1/1.3" CMOS sensor P2-R1(N) 24x zoom: 1/1.5" CMOS sensor |
Image Stabilization E.I.S. |
| Horizontal Resolution (TV Lines) 2160 TV Lines |
Focus Control PDAF (Phase Detection Auto Focus), Manual Focus |
| Built in ND Filter No |
Image Profile Rec 709, Cine, High Contrast, Vivid, HLG, HLG Vivid, Concert, Gamma |
Exposure Control
| Shutter Speed 1/8000 to 1 second |
Gain P2-R1(N) 18x zoom: 0 to 24 dB (ISO 800 to 25600) P2-R1(N) 24x zoom: 0 to 36 dB (ISO 200 to 12800) |
| White Balance Auto Incandescent Cloudy D10000 Fluorescent Indoor Daylight Shade Manual Expert |
Lens
| Focal Length P2-R1(N) 18x zoom: 36mm to 648mm (35mm equivalent) P2-R1(N) 24x zoom: 32mm to 768mm (35mm equivalent) |
Maximum Aperture P2-R1(N) 18x zoom: f/1.6 (W) / f/3.5 (T) to f/11 P2-R1(N) 24x zoom: f/1.6 (W) / f/4.5 (T) to f/7.1 |
| Optical Zoom Ratio P2-R1(N) 18x zoom: 18x P2-R1(N) 24x zoom: 24x |
Minimum Focus Distance P2-R1(N) 18x zoom: Wide - 9.5mm, Tele - 171mm P2-R1(N) 24x zoom: Wide - 6.5mm, Tele - 156mm |
| Max Digital Zoom P2-R1(N) 18x zoom: 36x (in 1080p) P2-R1(N) 24x zoom: 48x (in 1080p) |
ND No |
| Field of View P2-R1(N) 18x zoom - Horizontal: 51º to 3.6º P2-R1(N) 24x zoom - Horizontal: 60º to 3.2º |
OLPF No |
Video Capture
| External Recording Modes HDMI 2.0 UHD 4K (3840 x 2160) at 23.98/24/25/29.97/50/59.94 fps HD (1920 x 1080p) at 23.98/24/25/29.97/50/59.94 fps HD (1920 x 1080i) at 50/59.94 fps SDI / BNC HD (1920 x 1080p) at 23.98/24/25/29.97/50/59.94 fps HD (1920 x 1080i) at 50/59.94 fps RJ45 / USB UHD 4K (3840 x 2160) at 24/25/29.97/50/59.94 fps HD (1920 x 1080p) at 24/25/29.97/50/59.94 |
Audio Recording 3.5 mm TRS (Mic in / Line in) |
| Internal Recording Modes HD (1920 x 1080p) at 23.98/24/25/29.97/50/59.94/120fps max |
Broadcast Output NTSC / PAL |
| IP Streaming RTMP, RTMPS, RTSP, SRT, SSP, NDI_HX3* UHD 4K (3840 x 2160) at 24/25/29.97/50/59.94 fps HD (1920 x 1080p) at 24/25/29.97/50/59.94 |
Control
| Presets 256 via CGI 100 via VISCA 9 via IR |
Tally Light Yes |
| Move Speed Pan: 0.1 to 180º/sec Tilt: 0.1 to 180º/sec |
Supported Control Methods IR VISCA over RS-422 VISCA over IP Web Client USB |
| Movement Range Pan: 350º (-175º to +175º) Tilt: 240º (-30º to +210º) |
FreeD Yes |
| Movement Accuracy 0.01º |
Interface
| Media / Memory Card Slot SD (4K 60fps max, H.265, 8-bit color) |
Audio I/O 1x 1/8" / 3.5 mm TRS Stereo Mic/Line Input |
| Video I/O 1x BNC (3G-SDI) Output 1x RJ45 (IP) Output 1x HDMI 2.0 Output 1x USB-C 3.0 Gen 1 Output |
Other I/O 1x BNC (Genlock) Input 1x RJ45 (VISCA / RS-422) Input 1x RJ45 (VISCA / RS-422) Output |
Power
| PoE Support PoE+ 802.3at |
Power Consumption 18W maximum |
| Power I/O 1x Barrel (12V DC) Input |
Environmental
| Operating Temperature 0 °C to 40 °C (32 °F to 104 °F) |
General
| Mounting 3/8" Screw Hole + 1/4" Adapter Desktop / Ceiling / Wall Mount (Optional accessory) |
Environmental Resistance No |
| Certifications CE, FCC, RoHS |
Color Black |
| Dimensions (W X H x D) P2-R1(N) 18x zoom: 6.8 x 9.3 x 7.7" / 175.0 x 235.5 x 195.5mm P2-R1(N) 24x zoom: 6.8 x 9.3 x 7.6" / 175.0 x 235.5 x 192.5mm |
Color Black |
| Weight P2-R1(N) 18x zoom: 7.39 lb / 3.35 kg (Camera Unit only), 12.02 lb / 5.45kg (Full Package) P2-R1(N) 24x zoom: 6.77 lb / 3.07 kg (Camera Unit only), 11.4 lb / 5.17kg (Full Package) |
Fanless Design Yes |
Note: All weight and dimensions are rounded values. Dimensions do not include projecting object and rubber feet.
Disclaimer: All product features and technical specifications stated are subjected to Z CAM's sole interpretation and explanation.
Specifications are subject to change without notice.
1. It includes four models: P2-R1 18x zoom, P2-R1N 18x zoom, P2-R1 24x zoom, and P2-R1N 24x zoom. Among them, the models marked with "N" are versions that support the NDI protocol.
2. The P2-R1 (N) 18x zoom is equipped with a 1/1.3-inch CMOS sensor, while the P2-R1 (N) 24x zoom is equipped with a 1/1.5-inch CMOS sensor.
